An Introduction to Nested Blocks Using InnerBlocks

Nested Dolls
InnerBlocks are Similar to Nested Dolls

Nested blocks, also known as InnerBlocks, were a mystery to me for the longest time. I stumbled upon them quite by accident. While using a deprecated property in a RichText component, a warning popped up, suggesting I switch to InnerBlocks. The transition was anything but smooth, largely because I was navigating through unfamiliar terminology and concepts.

If you’re confused by InnerBlocks, you’re not alone. Nested blocks are a game changer, and within this tutorial I will explain what InnerBlocks are, why they’re useful, and how to create your own nested blocks.

The structure of a block

Let’s quickly go over what the structure of a typical block looks like.

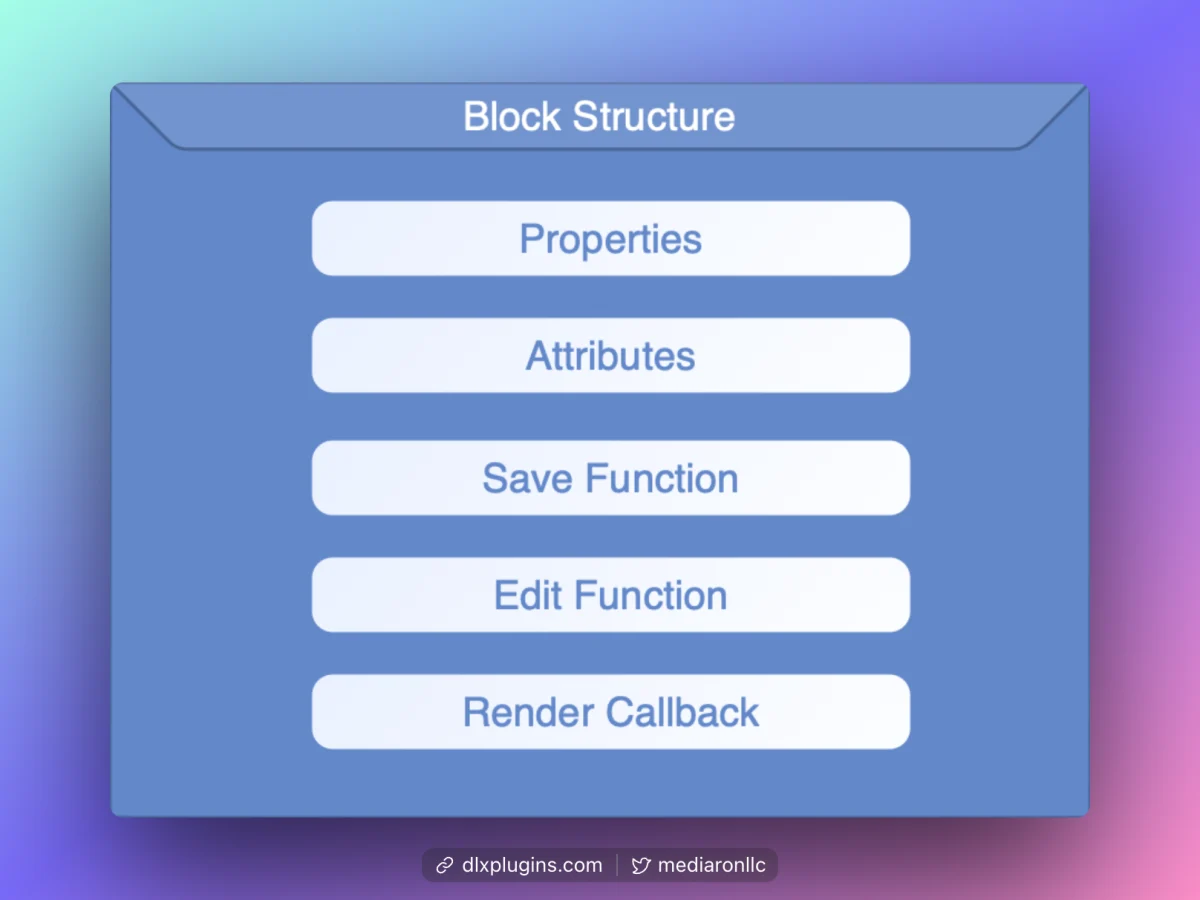

Diagram of a block's overall structure
Diagram of a Block’s Overall Structure

A block can be a lot of moving pieces, but for the sake of brevity, the major pieces of blocks are:

  • Properties: these are defined in block.json. These are things like the block’s name, keywords, scripts, etc.
  • Attributes: also defined in block.json, attributes are like stored option variables for a block.
  • Save Function: This saves any block or InnerBlocks, and the return type indicates whether it’s a dynamic block.
  • Edit Function: This declares how the block is rendered in the block editor and the frontend (if not dynamic).
  • Render Callback: This declares how the block is rendered on the frontend (only if dynamic).

How do InnerBlocks factor into the block structure?

Each block can have one set of InnerBlocks. Let’s take an alert block, for example. It has a title, a body, and a call-to-action button.

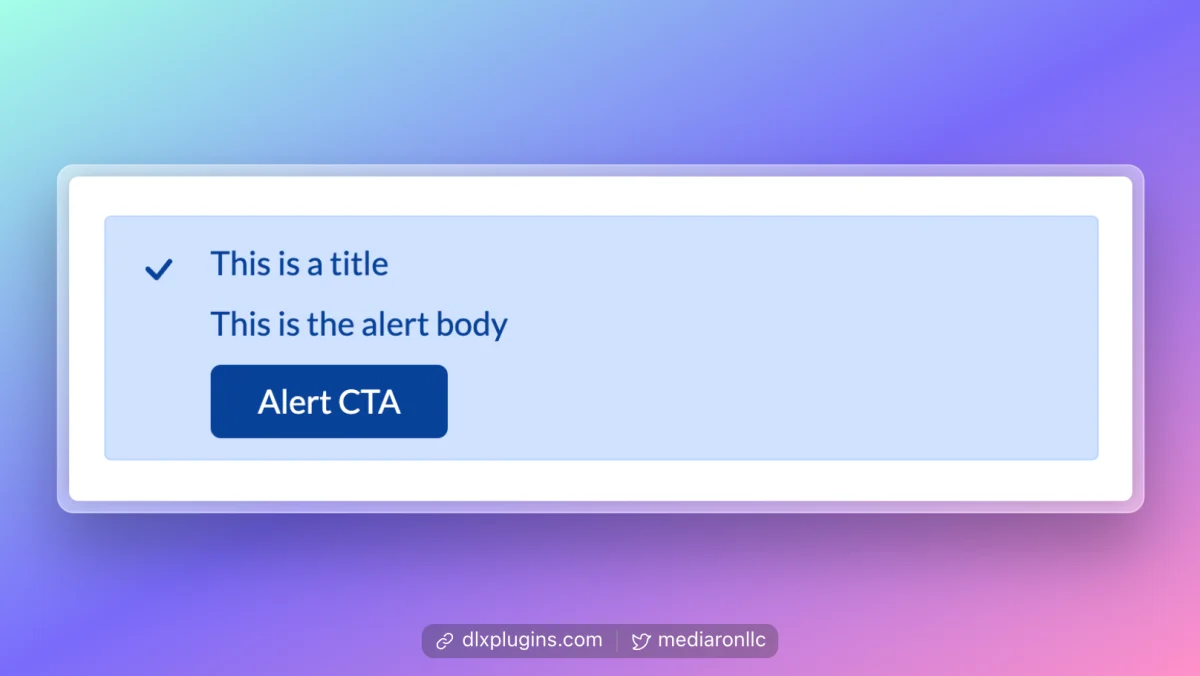

Sample Alert Block
Sample Alert Block

The title and button are built into the block, but the alert body can be InnerBlocks in order to have multiple items as part of the body.

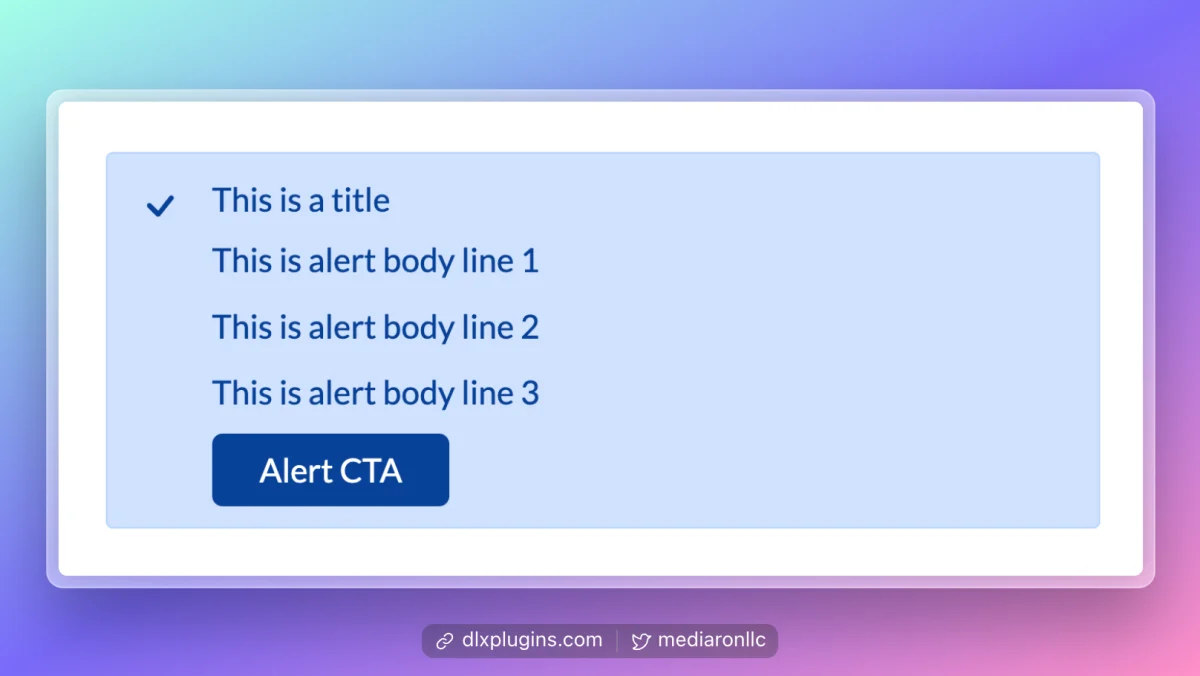

Alert Block With Multiple Items
Alert Block With Multiple Items

In this case, the InnerBlocks make up the body content. You can see this in the diagram below.

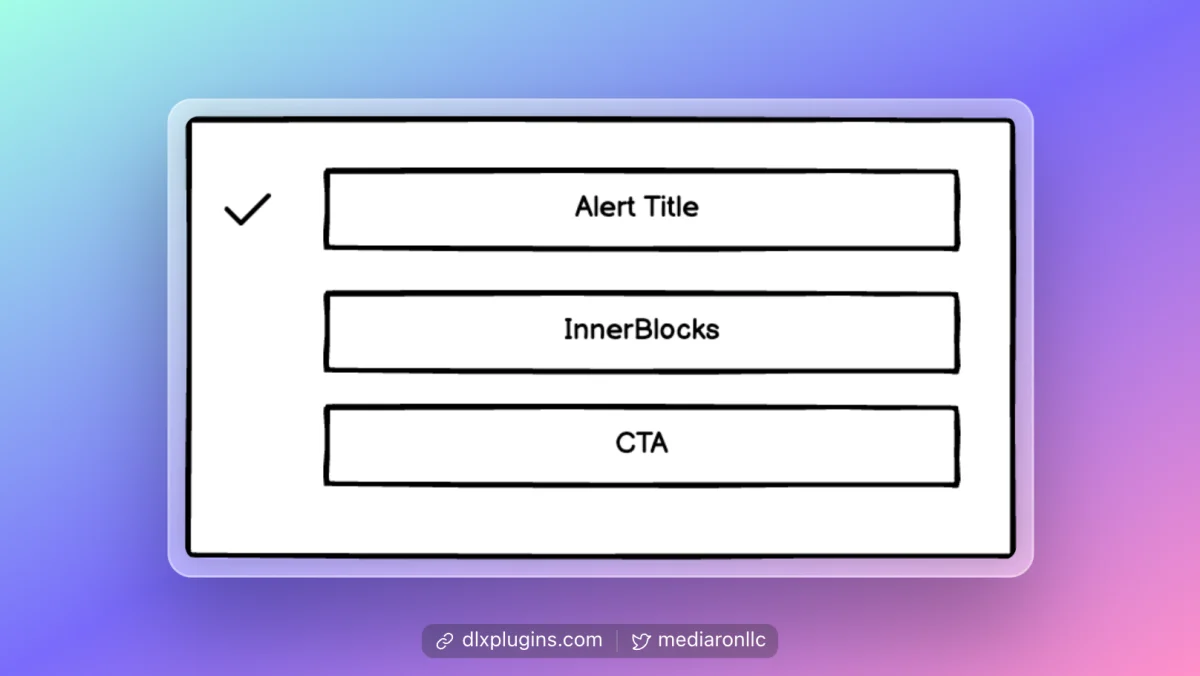

Alert Block Diagram With InnerBlocks
Alert Block Diagram With InnerBlocks

In this scenario, the title and CTA are part of the parent block but have InnerBlocks that make up the body text. The point here is that you can place InnerBlocks anywhere within your block structure.

Parent blocks and InnerBlocks

When you’re working with InnerBlocks, think of it like a family tree. You have a ‘Parent Block,’ which is the main block you start with. Inside this Parent Block, you have a placeholder, also known as InnerBlocks. You can insert new blocks within the InnerBlocks, allowing you to create more complex and interactive blocks.

For this next example, we’ll use a list block. The parent is the UL tag, while the InnerBlocks are the LI tags.

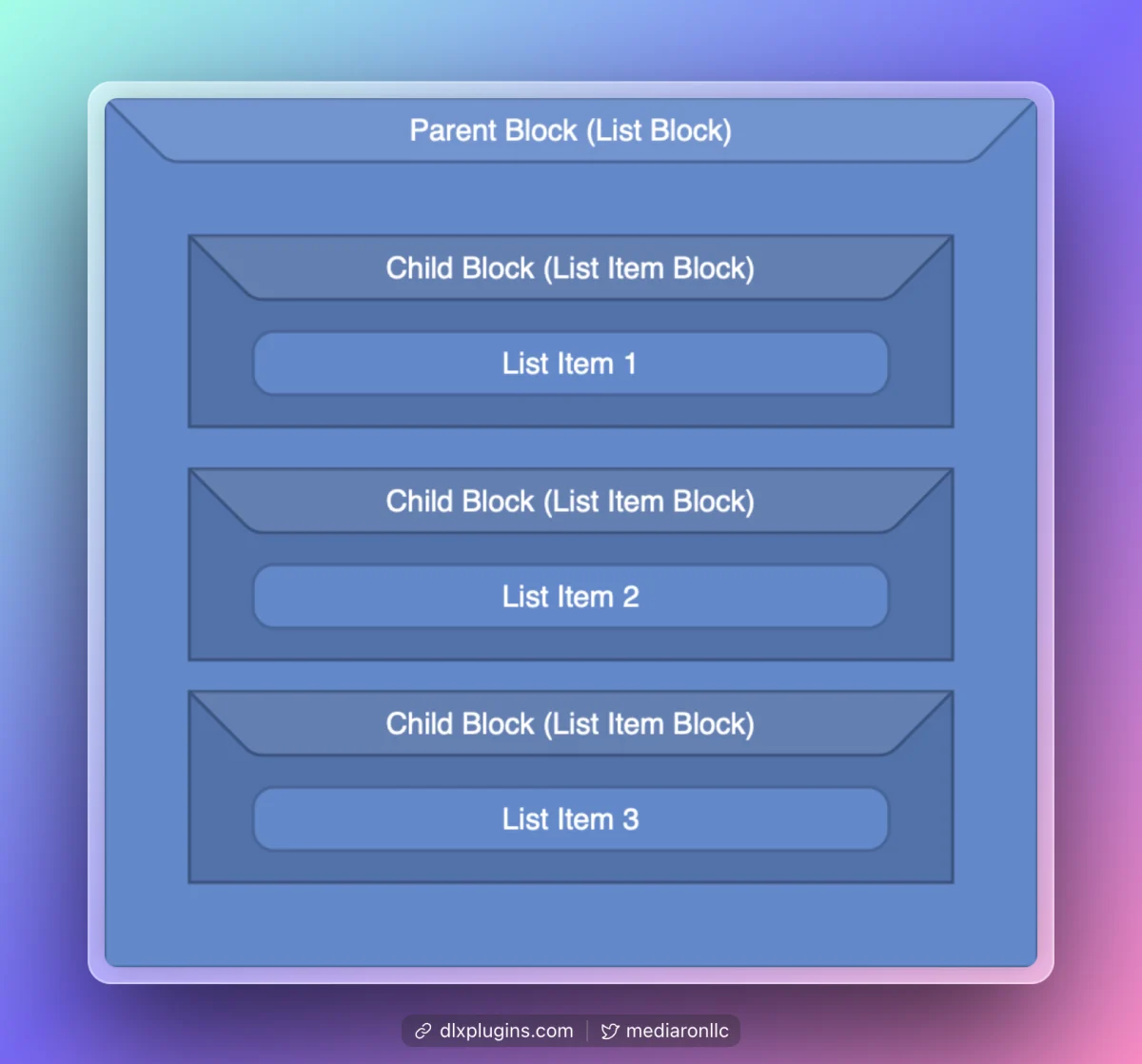

Diagram of a parent block showing a child innerblock, which has multiple instances of itself.
Parent Blocks Can Contain One Total InnerBlock

The diagram above shows one parent block, which acts like a UL tag wrapper. Within the parent block is an InnerBlock, which can create as many instances of the child block (LI tags) as you desire.

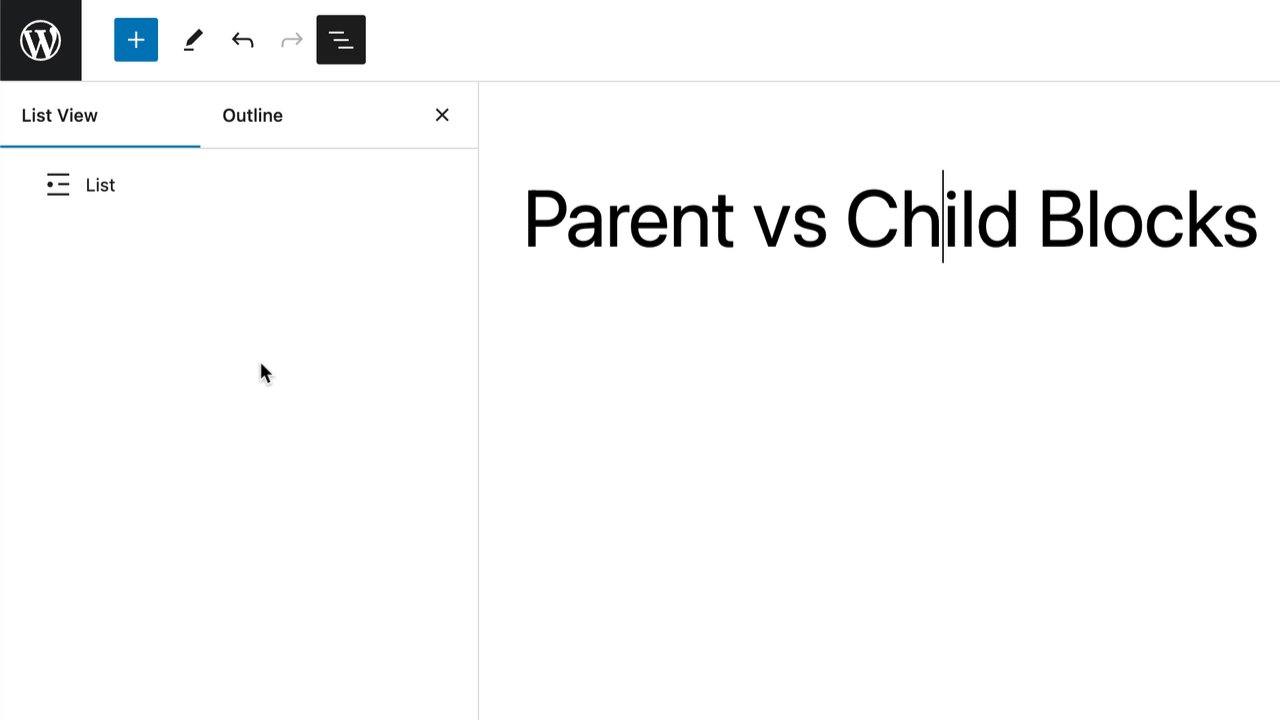

Here’s a simple animated gif showing how parent and child blocks interact.

Animation showing list items being added in a tree view
Visual Tree View of Adding Nested Blocks

As you can see, the parent has one set of InnerBlocks, but you can have as many items within InnerBlocks as you desire. Adding to the complexity, InnerBlocks can have their own InnerBlocks, so you can do further nesting if required.

InnerBlocks concepts and definitions

InnerBlocks have their own internal lingo and terminology, and it’s important to know the concepts before diving in. Let’s start with React hooks.

React hooks

A React hook is just a function that returns values and only works in functional components. Hooks can be useful for managing state, network lookups, or keeping tabs on data that might be changing.

For example, the hook useState is extremely useful for setting and updating state within a functional component. Here’s an example of launching a modal in the block editor on a button click.

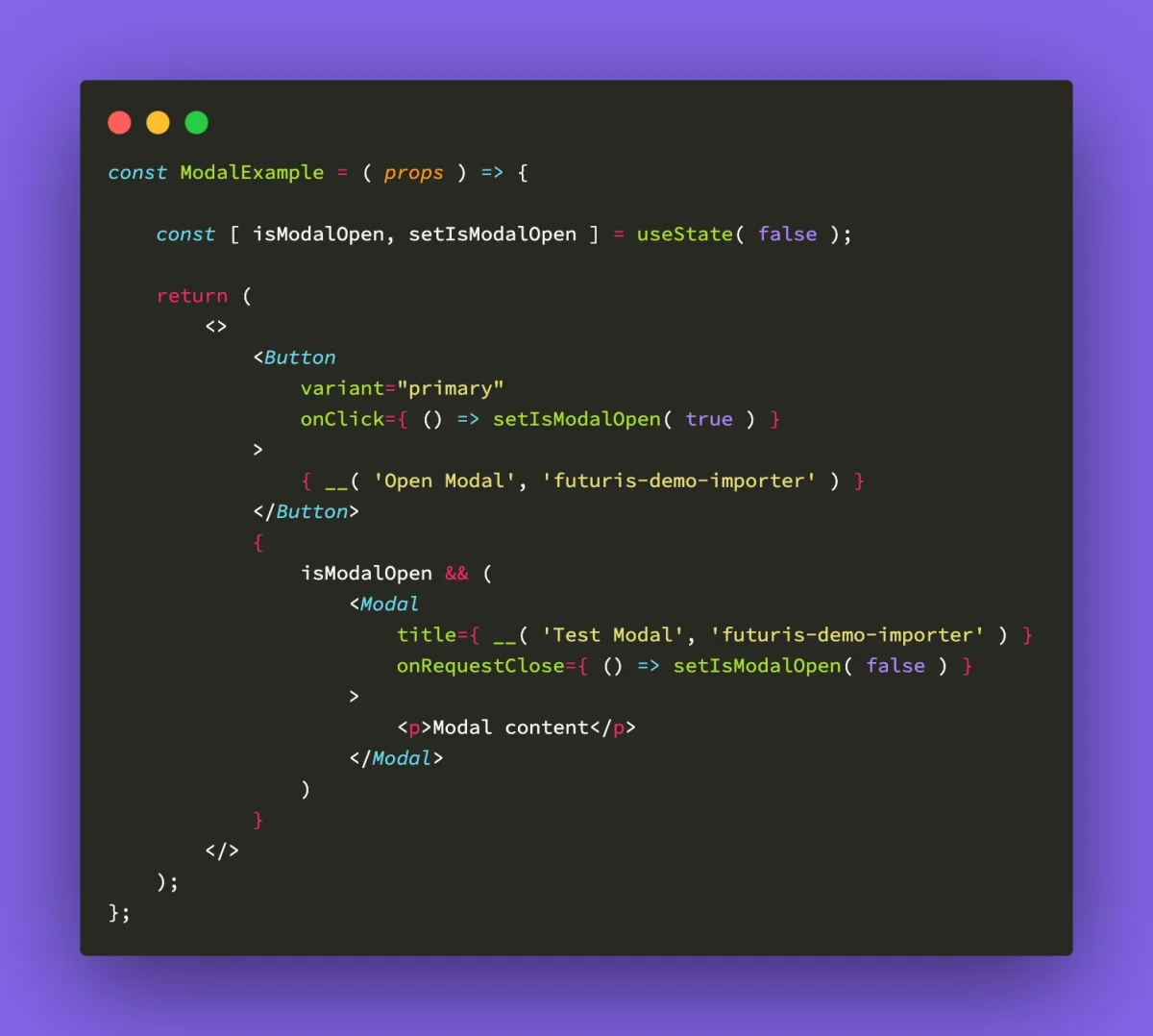

Code showing useState to open a modal
Using Hook useState to Launch a Modal

We can even create our own hooks since they are just functions that return values. Here’s an example of a hook that returns the current post-author ID.

const usePostAuthorId = () => {
	const authorId = useSelect((select) => {
		// Accessing the current post's data
		const { getCurrentPost } = select('core/editor');
		const post = getCurrentPost();
		return post ? post.author : undefined;
	});

	return authorId;
};Code language: JavaScript (javascript)

Here’s how you would implement the above hook into a functional component.

const ShowAuthor = (props) => {

	const authorId = usePostAuthorId();

	return (
		<>
			{ `Author ID: ${authorId}` }
		</>
	);
};
export default ShowAuthor;Code language: JavaScript (javascript)

Whenever the post author is updated for the post, the author ID will change.

Since you can create custom hooks and hooks can return values, they are very useful for sharing functionality and sometimes data amongst different pieces of your component.

Please note that there are rules of hooks that should be followed, notably:

  • React hooks always start with the keyword use (e.g., useState, useEffect).
  • Hooks should only be called in functional components.
  • Hooks should be called at the top level of a component and not used in any conditions, effects, or loops.

Hooks are extremely useful, and this is just skimming the surface as to what’s possible. For more on React hooks, please learn more about the built-in hooks and how to create custom ones.

Let’s move to the first hook we’ll encounter when dealing with InnerBlocks.

useBlockProps

The React hook useBlockProps is designed to be applied to a block’s outermost HTML wrapper. This means that when you’re outputting the structure of your block to the screen, you need to wrap the outermost container with the properties of this hook.

To understand what the hook useBlockProps does, we need to understand what it returns. I’ve pruned out most of what is returned by the hook. Please observe the various properties that are returned, which will be applied as HTML attributes to a wrapper element.

return {
	tabIndex: blockEditingMode === 'disabled' ? -1 : 0,
	...wrapperProps,
	...props,
	ref: mergedRefs,
	id: `block-${ clientId }${ htmlSuffix }`,
	role: 'document',
	'aria-label': blockLabel,
	'data-block': clientId,
	'data-type': name,
	'data-title': blockTitle,
	inert: isSubtreeDisabled ? 'true' : undefined,
	className: classnames(
		'block-editor-block-list__block',
		{
			// The wp-block className is important for editor styles.
			'wp-block': ! isAligned,
			'has-block-overlay': hasOverlay,
			'is-selected': isSelected,
			'is-highlighted': isHighlighted,
			'is-multi-selected': isMultiSelected,
			'is-partially-selected': isPartiallySelected,
			'is-reusable': isReusable,
			'is-dragging': isDragging,
			'has-child-selected': hasChildSelected,
			'remove-outline': removeOutline,
			'is-block-moving-mode': isBlockMovingMode,
			'can-insert-moving-block': canInsertMovingBlock,
			'is-editing-disabled': isEditingDisabled,
			'is-content-locked-temporarily-editing-as-blocks':
				isTemporarilyEditingAsBlocks,
		},
		className,
		props.className,
		wrapperProps.className,
		defaultClassName
	),
	style: { ...wrapperProps.style, ...props.style },
};Code language: JavaScript (javascript)

The return format of useBlockProps is an object, and with that, we can assign that object to a variable and use JavaScript spread syntax (the three dots ...) to unravel the properties onto the chosen HTML wrapper.

Here’s an example of using useBlockProps to wrap a block:

/**
 * Import block dependencies.
 */
import { useBlockProps } from '@wordpress/block-editor';
import { __ } from '@wordpress/i18n';

const QuotesBlockSample = ( props ) => {

	// Get the default prop shortcuts.
	const { attributes, setAttributes, isSelected, clientId } = props;

	// Set block props.
	const blockProps = useBlockProps(
		{
			className: 'dlx-quotes-block',
		}
	);

	return (
		<>
			<blockquote { ...blockProps }>
				Blockquote content
			</blockquote>
		</>
	);
};
export default QuotesBlockSample;
Code language: JavaScript (javascript)

In this particular example, I’m creating a simple quotes block. Since the outermost container will be a blockquote, I use spread syntax to distribute all the properties to the blockquote element. I’ve highlighted the area where spread syntax is used.

Here’s an example of some of the properties useBlockProps adds to a parent element:

<blockquote
	tabindex="0"
	class="block-editor-block-list__block wp-block dlx-quotes-block is-selected wp-block-dlxplugins-dlx-quotes-block-sample"
	id="block-2847a027-fe6c-49de-9305-251c490d4229" role="document" aria-label="Block: DLX Quotes Block"
	data-block="2847a027-fe6c-49de-9305-251c490d4229" data-type="dlxplugins/dlx-quotes-block-sample"
	data-title="DLX Quotes Block">
	Blockquote Content
</blockquote>Code language: HTML, XML (xml)

As you can see, there are various block-specific attributes being applied, which would be hard to manage on your own without a hook, especially as a block’s state changes. The additional properties allow the block editor to manage the block internally.

Now that we have a basic block let’s set up the InnerBlocks.

useInnerBlocksProps

You would use hook useInnerBlocksProps to set up your InnerBlocks.

Hooks are simply functions, and useInnerBlocksProps takes two arguments:

  1. A JavaScript object with any CSS classes or refs.
  2. A JavaScript object with InnerBlocks options.

It’s helpful to know what useInnerBlocksProps returns in order to gauge how it works:

export function useInnerBlocksProps( props = {}, options = {} ) {
	const fallbackRef = useRef();
	const { clientId } = useBlockEditContext();

	const ref = props.ref || fallbackRef;
	const InnerBlocks =
		options.value && options.onChange
			? ControlledInnerBlocks
			: UncontrolledInnerBlocks;

	return {
		...props,
		ref,
		children: (
			<InnerBlocks
				{ ...options }
				clientId={ clientId }
				wrapperRef={ ref }
			/>
		),
	};
}Code language: JavaScript (javascript)

The hook spreads out any passed props, but returns an object called children, which contains an InnerBlocks component.

Diving into the InnerBlocks component, it returns a block list of child blocks, which suggests this is the main reason why InnerBlocks can only have one parent block.

For the sake of this next example, and to ease things in gradually, we’ll use useInnerBlocksProps with just the defaults. With just the defaults, the InnerBlock that will be used is the core/paragraph block.

/**
 * Import CSS.
 */
import './editor.scss';

/**
 * Import block dependencies.
 */
import { useBlockProps, useInnerBlocksProps, InnerBlocks } from '@wordpress/block-editor';
import { __ } from '@wordpress/i18n';

const QuotesBlockSample = ( props ) => {

	// Get the default prop shortcuts.
	const { attributes, setAttributes, isSelected, clientId } = props;

	// Set block props.
	const blockProps = useBlockProps(
		{
			className: 'dlx-quotes-block',
		}
	);

	// Set InnerBlock props.
	const innerBlocksProps = useInnerBlocksProps();

	return (
		<>
			<blockquote { ...blockProps }>
				<div { ...innerBlocksProps } />
			</blockquote>
		</>
	);
};
export default QuotesBlockSample;
Code language: JavaScript (javascript)

Just as with useBlockProps, you need to use a parent element and spread the return value using spread syntax.

Before we dive into things, I’ll show you a maintenance tip that will save you some time when setting up InnerBlocks.

InnerBlocks and HTML Nesting
InnerBlocks and HTML Nesting

The HTML structure is a bit off when setting up the blockquote. The structure is currently as follows:

  • blockquote
    • div.block-editor-block-list__layout
      • p
      • p

This isn’t ideal, as the paragraph tags should be within the blockquote tag and not within any other wrapping element.

In this particular scenario, you can use spread syntax on the blockquote tag itself using useBlockProps and useInnerBlocksProps together.

/* Dependencies */

const QuotesBlockSample = ( props ) => {

	// Get the default prop shortcuts.
	const { attributes, setAttributes, isSelected, clientId } = props;

	// Set block props.
	const blockProps = useBlockProps(
		{
			className: 'dlx-quotes-block',
		}
	);

	// Set InnerBlock props.
	const innerBlocksProps = useInnerBlocksProps();

	return (
		<>
			<blockquote { ...blockProps } { ...innerBlocksProps } />
		</>
	);
};
export default QuotesBlockSample;
Code language: JavaScript (javascript)

This results in a more semantic HTML structure without any wrapper DIVs.

Paragraph Tags Wrapped Directly Beneath the Blockquote Tag
Paragraph Tags Wrapped Directly Beneath the Blockquote Tag

Let’s move to some InnerBlocks terminology that will assist us in managing our InnerBlocks.

Allowed blocks

With just the defaults, any block is allowed as an InnerBlock. By passing a list of allowed blocks, you can limit what types of blocks can be inserted. For example, I can set up the blockquote to accept a headline and a paragraph block.

Pass in a parameter called allowedBlocks as part of the 2nd argument to useInnerBlocksProps.

const QuotesBlockSample = ( props ) => {

	// Get the default prop shortcuts.
	const { attributes, setAttributes, isSelected, clientId } = props;

	// Set block props.
	const blockProps = useBlockProps(
		{
			className: 'dlx-quotes-block',
		}
	);

	// Set InnerBlock props.
	const innerBlocksProps = useInnerBlocksProps(
		{},
		{
			allowedBlocks: [ 'core/heading', 'core/paragraph' ],
		}
	);

	return (
		<>
			<blockquote { ...blockProps } { ...innerBlocksProps } />
		</>
	);
};
export default QuotesBlockSample;
Code language: JavaScript (javascript)

This will only allow the paragraph and heading blocks when inserting a new InnerBlock.

Paragraph and Heading Blocks Only for InnerBlocks
Paragraph and Heading Blocks Only for InnerBlocks

Orientation

By default, blocks are a top-down affair. You can change the orientation of how the block behaves in the editor by passing an orientation parameter to useInnerBlocksProps.

Orientation should only be used if you are applying flex or grid styles to the InnerBlocks container and need the inserter to be horizontal instead of vertical. For example, you may have a social media block that has horizontal icons for the social networks.

Here’s an example of using orientation:

const innerBlocksProps = useInnerBlocksProps(
	{},
	{
		allowedBlocks: [ 'core/heading', 'core/paragraph' ],
		orientation: 'horizontal',
	}
);Code language: JavaScript (javascript)

Templates

You can specify a template that will auto-insert when adding the parent block. For example, I can insert a headline followed by a paragraph.

const innerBlocksProps = useInnerBlocksProps(
	{},
	{
		allowedBlocks: ['core/heading', 'core/paragraph'],
		template: [
			['core/heading', { placeholder: 'Quote Author', level: 3 }],
			['core/paragraph', { placeholder: 'Quote Text' }],
		]
	}
);Code language: JavaScript (javascript)

When inserting the block, a headline and paragraph will be auto-inserted for us.

Example of Auto-Inserted Blocks
Example of Auto-Inserted Blocks

Template lock

You can choose to lock InnerBlocks using the templateLock property. This allows you to control how blocks are handled within the InnerBlocks.

The templateLock property can accept the following values:

  • contentOnly: This prevents any actions on the InnerBlocks and is fully locked down.
  • all: Similar to contentOnly, this locks all blocks in place and prevents removing or reordering the blocks.
  • insert: You can pass this to ensure that no new blocks are added, but reordering still works.
  • false: This disables all locking of InnerBlocks, even if the parent block is locked.

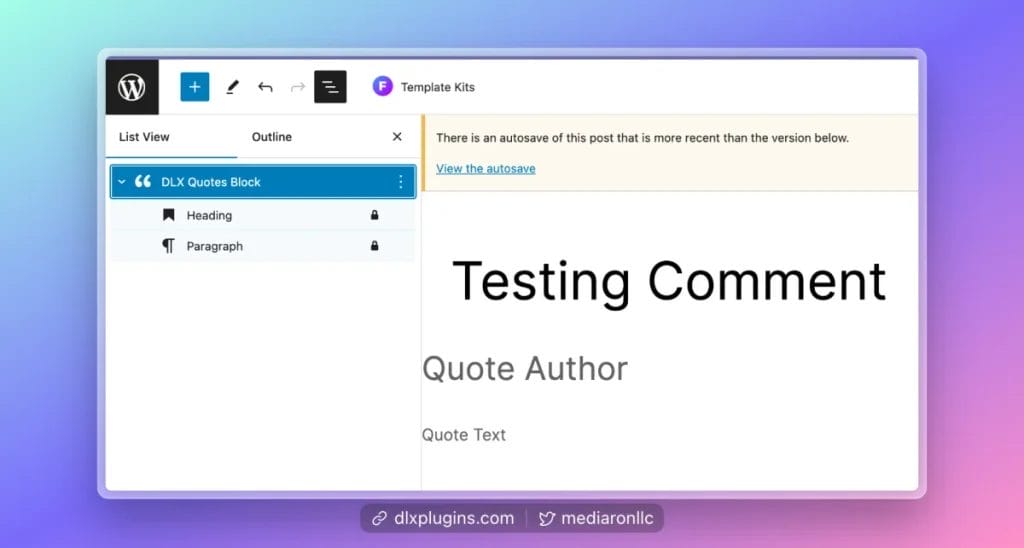

Here’s an example with the templateLock set to insert.

const innerBlocksProps = useInnerBlocksProps(
	{},
	{
		allowedBlocks: ['core/heading', 'core/paragraph'],
		template: [
			['core/heading', { placeholder: 'Quote Author', level: 3 }],
			['core/paragraph', { placeholder: 'Quote Text' }],
		],
		templateLock: 'insert',
	}
);Code language: JavaScript (javascript)

The result is a locked template, meaning I can’t insert or remove any blocks, but I can reorder them.

Locked Template Using templateLock
Locked Template Using templateLock

Now that the bulk of the terminology is out of the way, let’s set up a simple quotes block.

Setting up a simple Quotes block for InnerBlocks

In this next example, I’ll be using @wordpress/create-block to create a simple quotes block. The quote will have a content area, which will be InnerBlocks, and an attribution area, where someone can enter who authored the quote.

Here’s the command I’ve used to create the quotes block:

npx @wordpress/create-block@latest --namespace=dlxplugins --title="DLX Quotes" --wp-scripts --variant=dynamic dlx-quotes-inner-blocksCode language: Bash (bash)

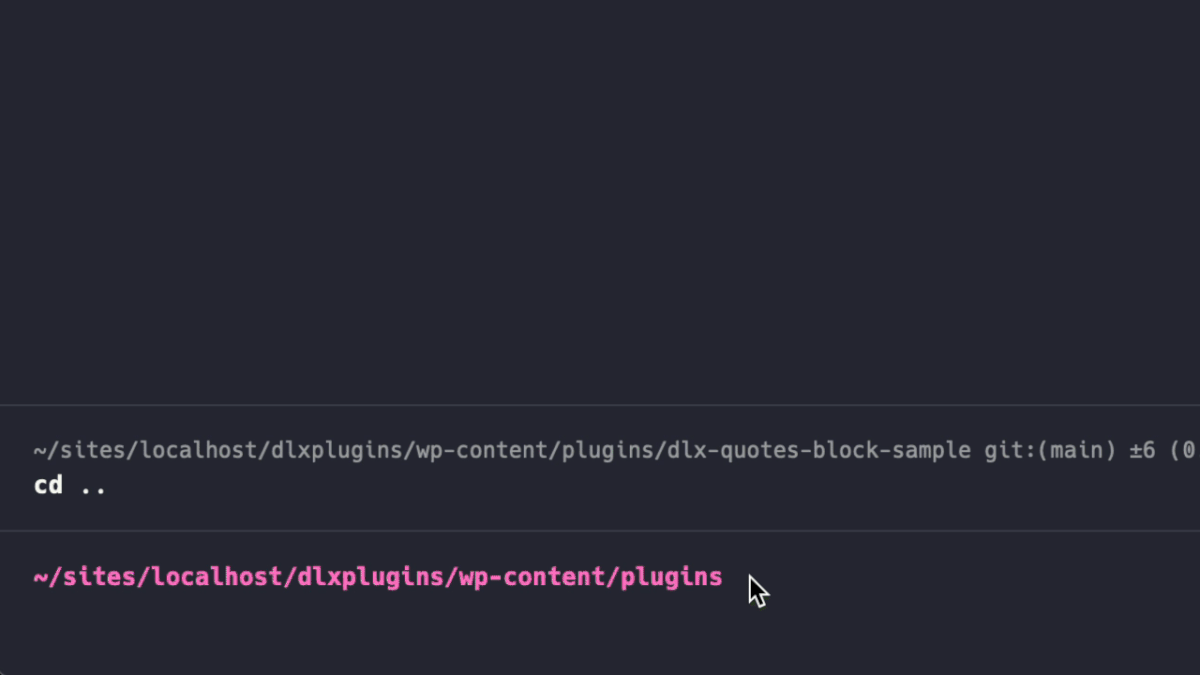

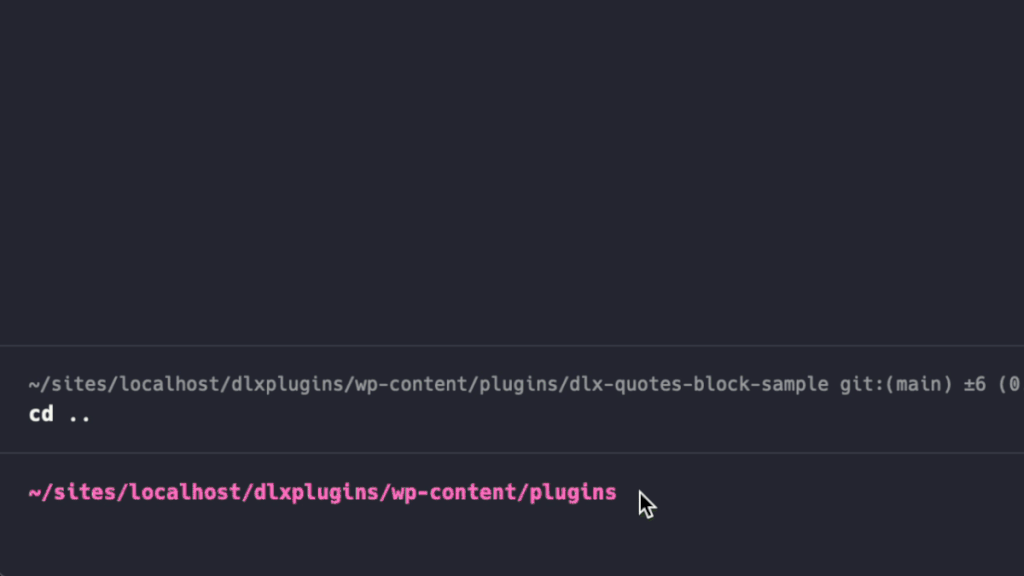

Creating a Block using Node
Creating a Block using Node

The result is a block plugin that can be activated. Here’s the folder structure of the block plugin:

.
└── dlx-quotes-inner-blocks-example/
    ├── build
    ├── src/
    │   ├── block.json
    │   ├── edit.js
    │   ├── index.js
    │   ├── render.php
    │   └── style.scss
    └── dlx-quotes-inner-blocks-example.phpCode language: AsciiDoc (asciidoc)

Let’s do a bit of configuring so we can begin setting up our quote block.

Updating block.json

I’ve added an attributes section and removed the viewScript property as we don’t need any scripts running on the frontend.

{
	"$schema": "https://schemas.wp.org/trunk/block.json",
	"apiVersion": 3,
	"name": "dlxplugins/dlx-quotes-inner-blocks-example",
	"version": "0.1.0",
	"title": "DLX Quotes",
	"category": "widgets",
	"icon": "smiley",
	"description": "Example blockquote with inner blocks.",
	"attributes": {
		"cite": {
			"type": "string",
			"default": ""
		}
	},
	"example": {},
	"supports": {
		"html": false
	},
	"textdomain": "dlx-quotes-inner-blocks-example",
	"editorScript": "file:./index.js",
	"editorStyle": "file:./index.css",
	"style": "file:./style-index.css",
	"render": "file:./render.php"
}
Code language: JSON / JSON with Comments (json)

Setting up the parent block

At the moment, our edit.js file outputs a placeholder.

export default function Edit() {
	return (
		<p { ...useBlockProps() }>
			{ __(
				'DLX Quotes – hello from the editor!',
				'dlx-quotes-inner-blocks'
			) }
		</p>
	);
}Code language: JavaScript (javascript)

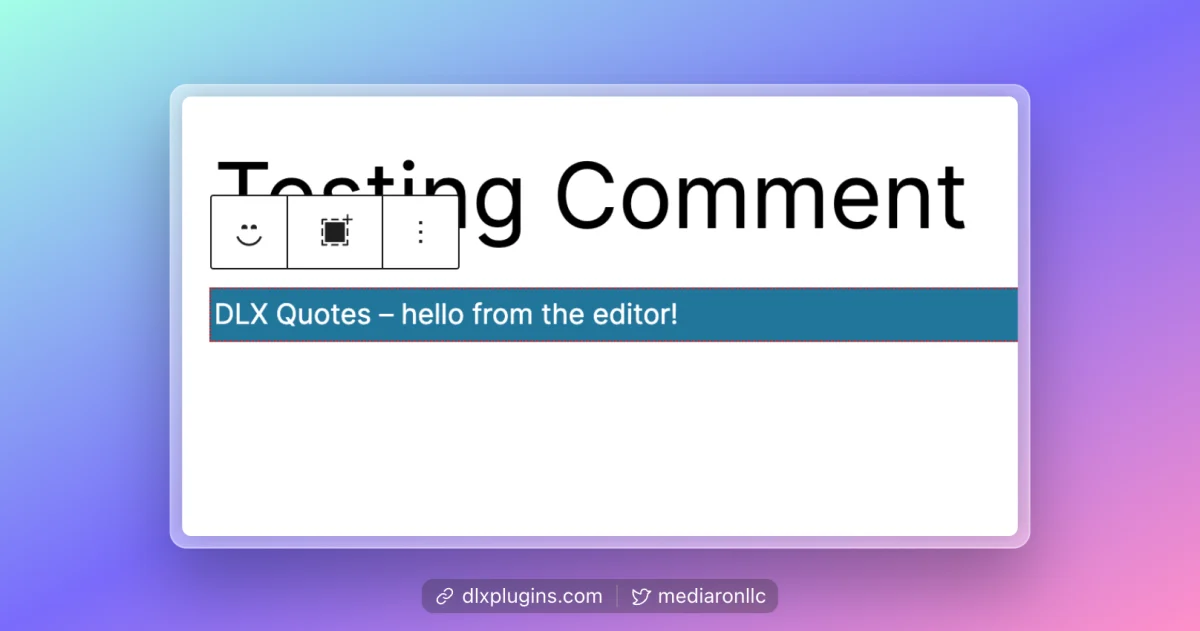

Placeholder for the Generated Block
Placeholder for the Generated Block

Let’s modify edit.js to accept our cite attribute, and output a blockquote.

We’ll need the RichText component, so we’ll do an import.

import { RichText } from '@wordpress/block-editor';Code language: JavaScript (javascript)

Next, I’ll set up the placeholder in the blockquote and add a citation area, which is where the RichText component will be used.

export default function Edit( props ) {
	const { attributes, setAttributes, isSelected, clientId } = props;
	const { cite } = attributes;
	return (
		<figure>
			<blockquote>
				Block quote placeholder
			</blockquote>
			<figcaption>
				<RichText
					tagName="cite"
					placeholder="Enter quote citation"
					value={ cite }
					allowedFormats={ [ 'core/bold', 'core/italic' ] }
					onChange={ ( value ) => setAttributes( { cite: value } ) }
				/>
			</figcaption>
		</figure>
	);
}Code language: JavaScript (javascript)

The result is a placeholder and an input for a citation.

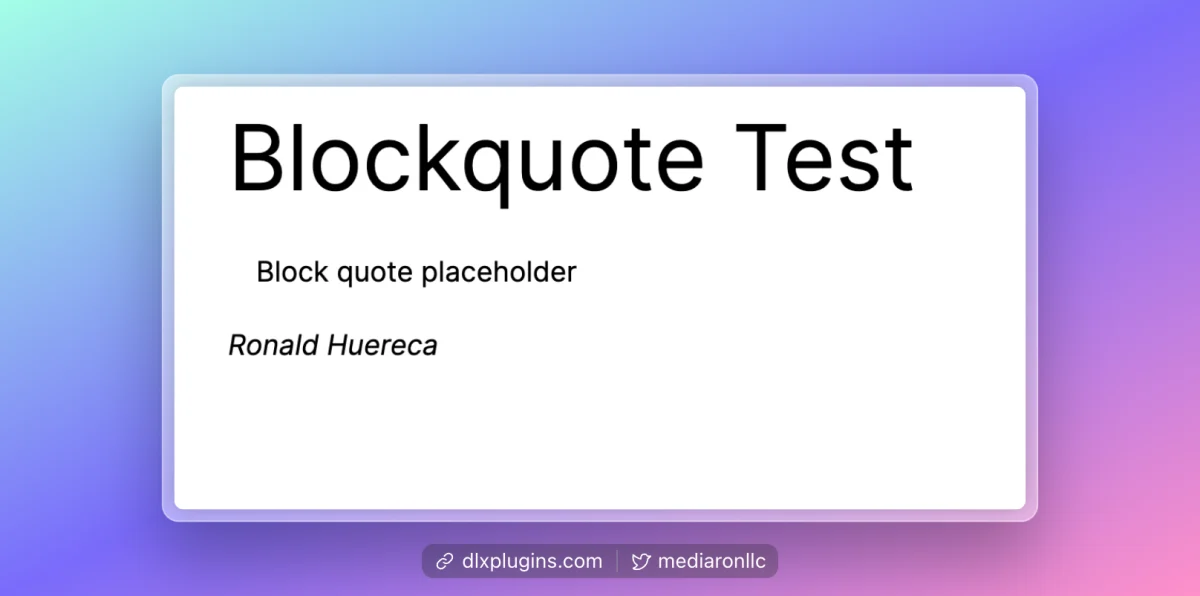

Blockquote Output Example
Blockquote Output Example

Next, let’s set up the InnerBlocks. We’ll need to import useInnerBlocksProps.

import { useBlockProps, useInnerBlocksProps } from '@wordpress/block-editor';Code language: JavaScript (javascript)

We’ll then set up a variable for the InnerBlocks.

const innerBlocksProps = useInnerBlocksProps(
	{},
	{
		allowedBlocks: ['core/paragraph'],
		template: [
			['core/paragraph', { placeholder: 'Please enter your Quote Text' }],
		]
	}
);Code language: JavaScript (javascript)

And finally, add it to the blockquote:

return (
	<figure {...blockProps}>
		<blockquote {...innerBlocksProps} />
		<figcaption>
			<RichText
				tagName="cite"
				placeholder="Enter quote citation"
				value={ cite }
				allowedFormats={ [ 'core/bold', 'core/italic' ] }
				onChange={ ( value ) => setAttributes( { cite: value } ) }
			/>
		</figcaption>
	</figure>
);
Code language: JavaScript (javascript)

The result is a blockquote with free text entry as long as it is a paragraph.

Blockquote With InnerBlocks Enabled
Blockquote With InnerBlocks Enabled

One added bonus you might have noticed is that you can reorder the InnerBlocks, which will save you from having to implement your own drag-and-drop mechanism.

Saving the InnerBlocks

Right now, the only thing saving is the citation. We haven’t yet wired up the InnerBlocks for saving just yet. We’ll need to modify the index.js file and add a save feature.

I’ll be demonstrating how to do a dynamic block, as it’s not as straightforward. For a JS only solution, you can follow the developer documentation on using the useInnerBlocksProps hook.

First, we’ll need to import InnerBlocks.

import { InnerBlocks } from '@wordpress/block-editor';Code language: JavaScript (javascript)

Next, we’ll add a save callback and return the content of the InnerBlocks.

registerBlockType( metadata.name, {
	/**
	 * @see ./edit.js
	 */
	edit: Edit,
	save: () => {
		return <InnerBlocks.Content />;
	}
} );Code language: JavaScript (javascript)

Now when we enter any content into the block, it’ll be saved.

Displaying the output

In render.php, we can modify what’s being displayed. We’ll mimic the HTML structure of the block.

There are three variables that are exposed in render.php:

  • attributes (the block attributes)
  • content (the InnerBlocks content)
  • block (WP_Block information about the block)

We’ll be using $attributes to get our cite value, and $content to retrieve our InnerBlocks content.

<?php
/**
 * @see https://github.com/WordPress/gutenberg/blob/trunk/docs/reference-guides/block-api/block-metadata.md#render
 */
$citation = $attributes['cite'];
?>
<figure class="wp-block-dlx-quotes-inner-blocks-example">
	<blockquote>
		<?php echo wp_kses_post( $content ); ?>
	</blockquote>
	<figcaption>
		<cite><?php echo wp_kses_post( $citation ); ?></cite>
	</figcaption>
</figure>Code language: PHP (php)

Now we’re able to view the block on the frontend.

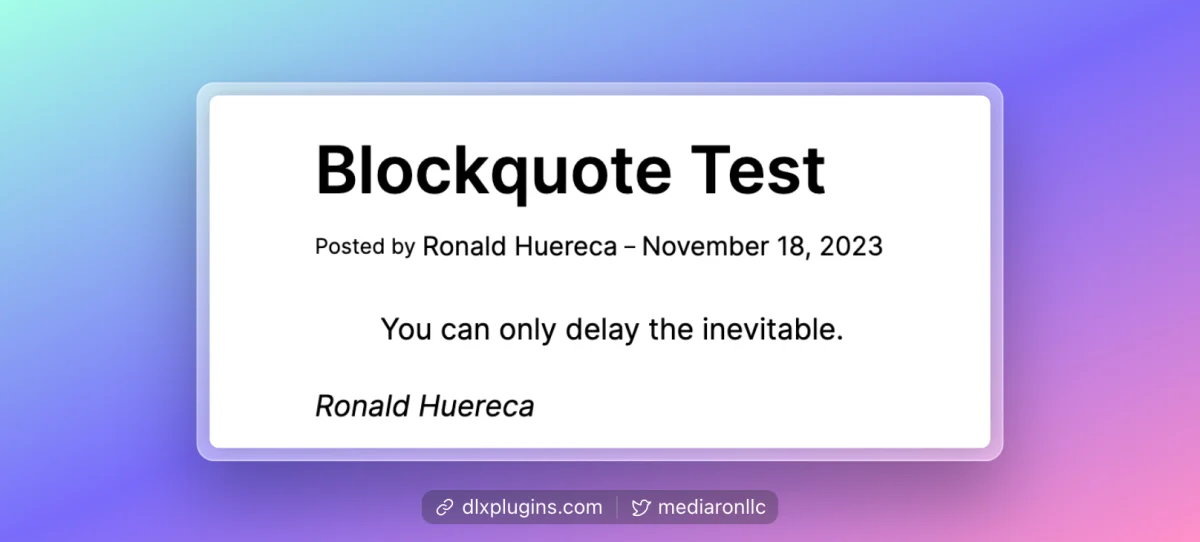

Blockquote With InnerBlocks on the Frontend
Blockquote With InnerBlocks on the Frontend

We have now successfully implemented InnerBlocks, saved the values, and have outputted them to the frontend.

Conclusion

InnerBlocks are definitely a concept that, once understood, can open the possibilities of what blocks are capable of doing.

In this tutorial, I’ve demonstrated how InnerBlocks works, how they interact with the parent block, and how to modify how InnerBlocks works and behaves.

In part 2 of this tutorial, I’ll be going over how to create a nested block. Please subscribe to be alerted to new tutorials.

Ronald Huereca
By: Ronald Huereca
Published On: on January 5, 2024

Ronald Huereca founded DLX Plugins in 2022 with the goal of providing deluxe plugins available for download. Find out more about DLX Plugins, check out some tutorials, and check out our plugins.

Shopping Cart
  • Your cart is empty.
Scroll to Top
